STC-9200 Temperature Controller Manual
Product overview
STC-9200 A universal temperature controller can be configured with two
temperature sensors for cabinet temperature regulation and defrosting control.
Support defrosting sensor, defrosting relay,fan relay output and copy card function.

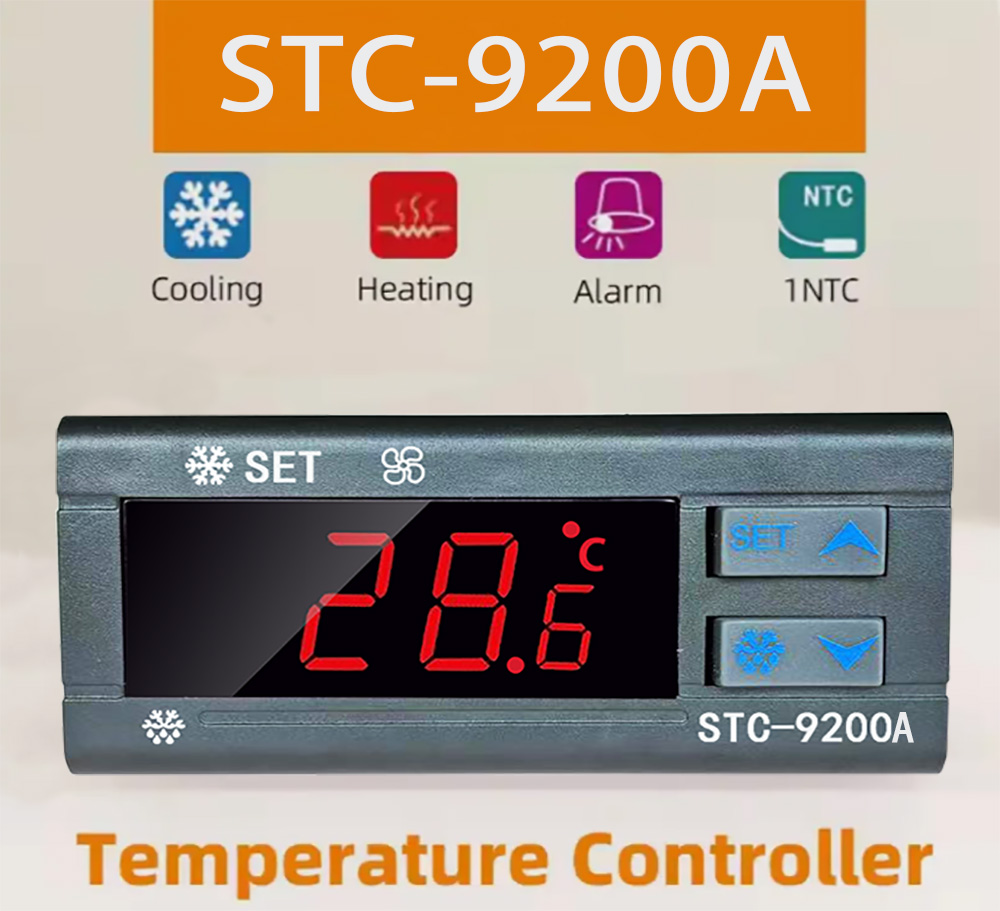

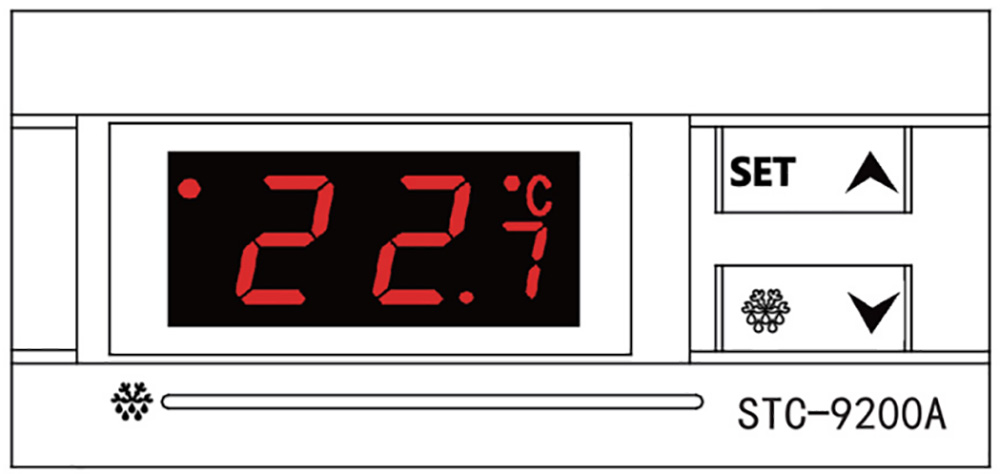

Operation and display panel

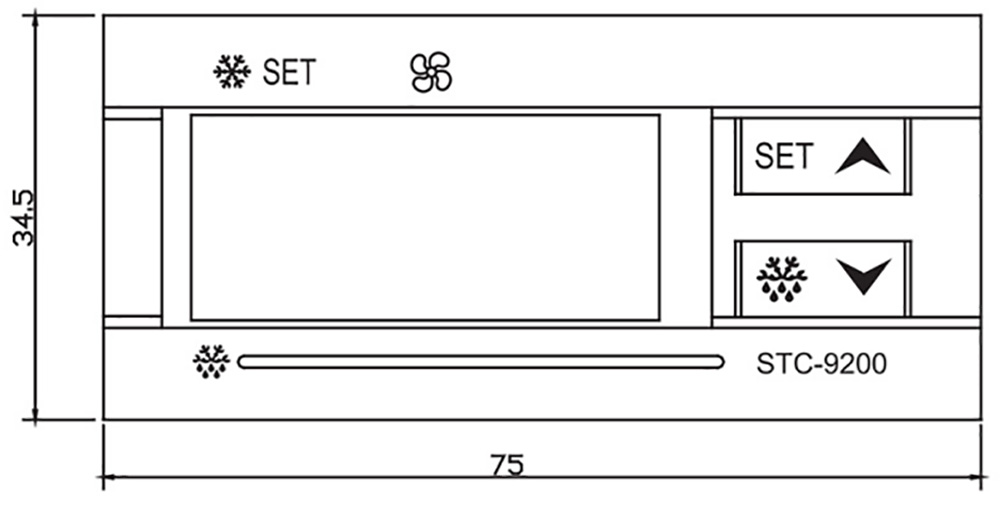

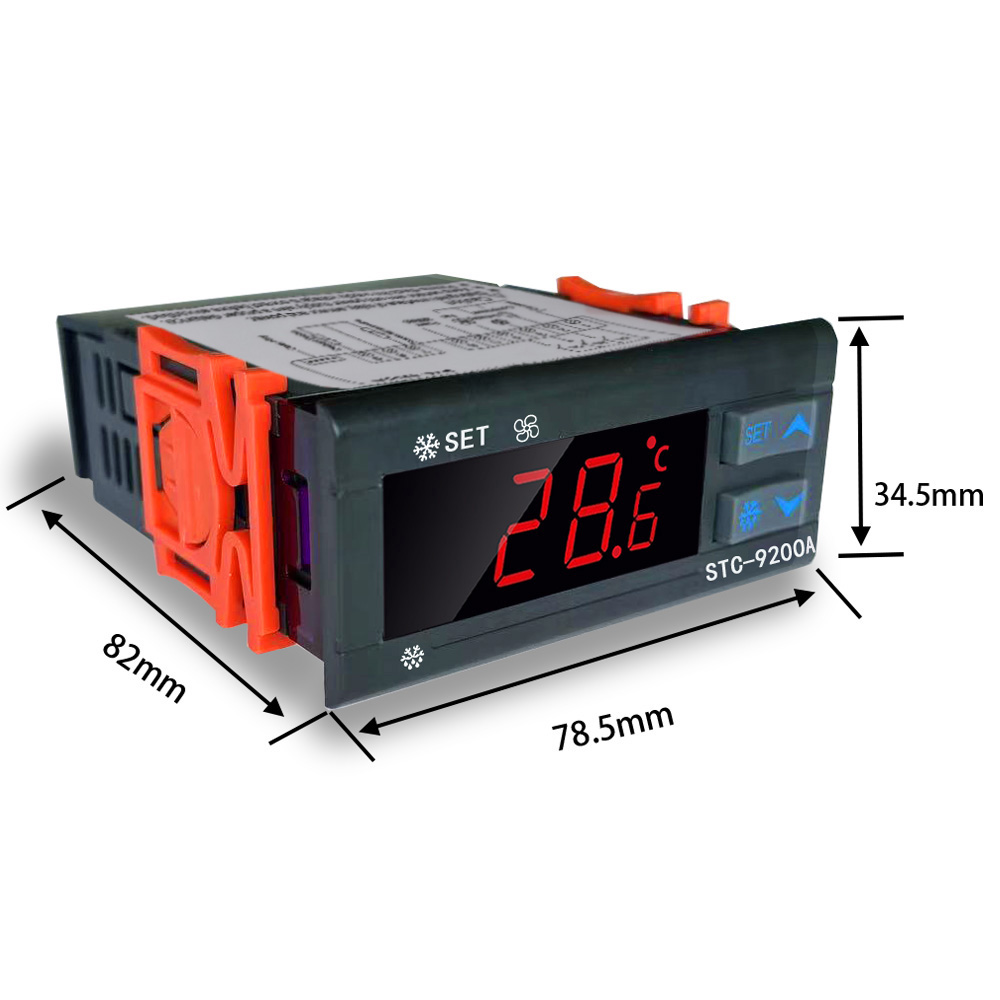

Specifications and dimensions
Installation size:71mmx29mm Size:78.5mmx34.5mmx82mm
Technical parameters
1) Measuring range:-50℃~99℃or-50℉ ~99℉
(Only when the sensor correction value is set to 0)
2)temperature resolution:0.1C/(cabinet temperature sensor)、
1℃C/℉(evaporator sensor)
3)Temperature measurement:-40℃~50℃,±1℃;50℃~70℃,
±2℃;the rest±3℃;or-40℉ ~99℉ ±2℉ ;Other±6F;
4)Temperature control range:-50C/℉ ~99°C/℉;
5)Power voltage:220±10%(VAC)、50/60Hz;
6)Overall power consumption:<3W;
7)Port output capacity:cooling:8Adefrosting:8A Fan:8A
8)Working environment temperature:0℃~55℃
9)Storage:-25℃~75℃,relative humidity:20%~85%(no condensation)

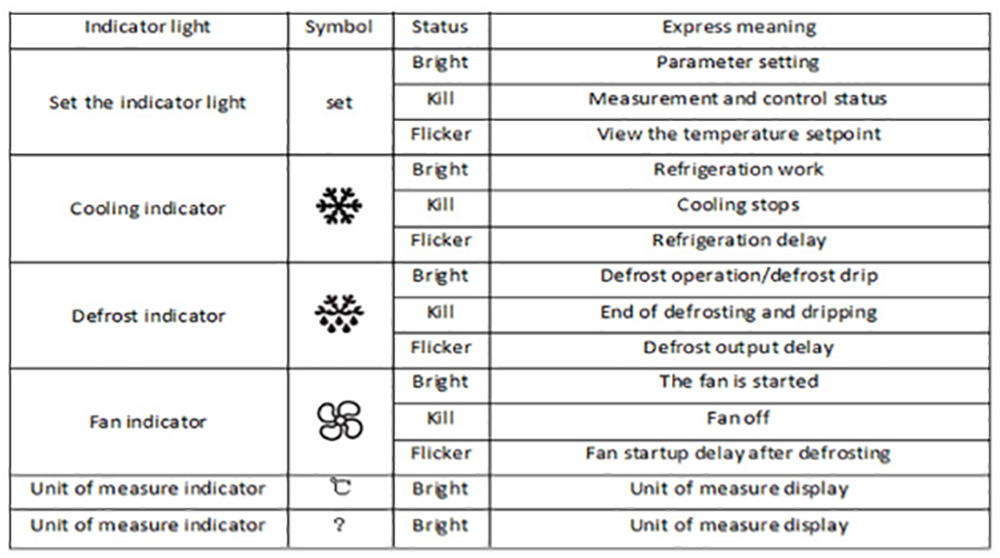

Indicator light status description
Indicator light
Front panel

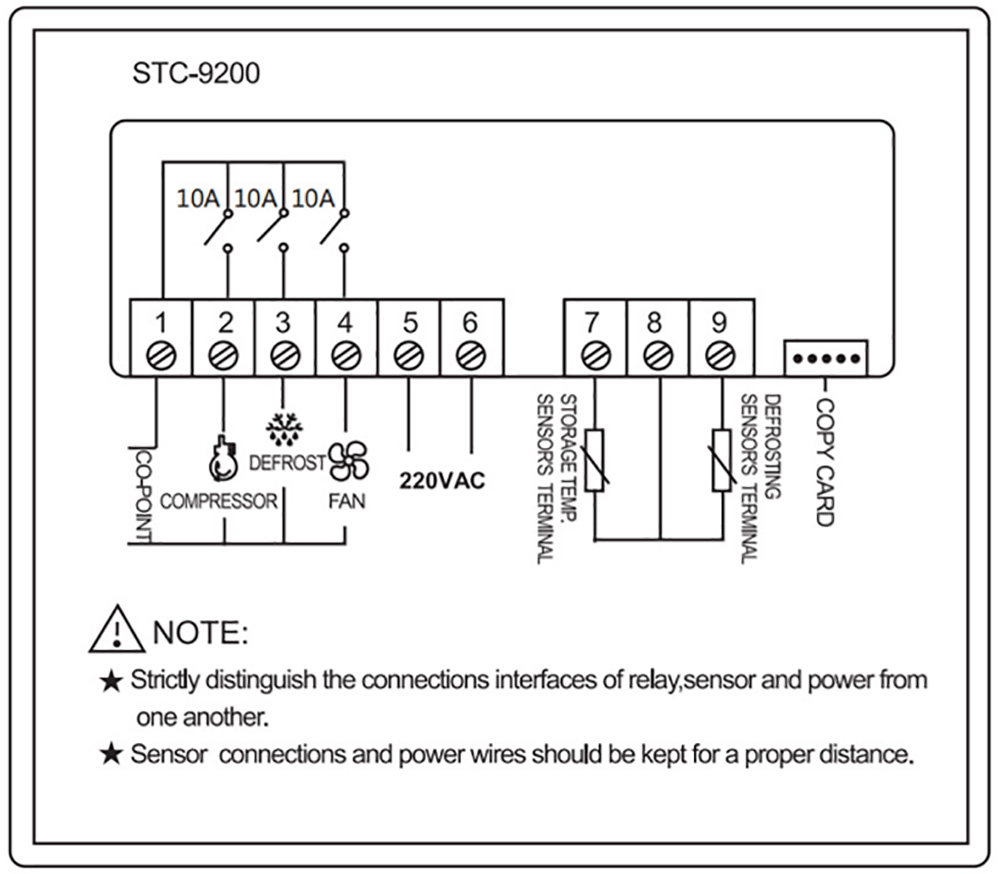

Wiring diagram
