Wholesale Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System

Home / Product / Electric valve / Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System

PDF Download

- Multi-leaf Salesman -

Welcome your contact consultation

  • ：+0086-18067425071（Wechat）

  • ：+0086-17758245073（WhatsApp）

  • ：+0086-574-62803230

  • ：Duoye0413@outlook.com

Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System zoom in
  • Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System
  • Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System
  • Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System
  • Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System

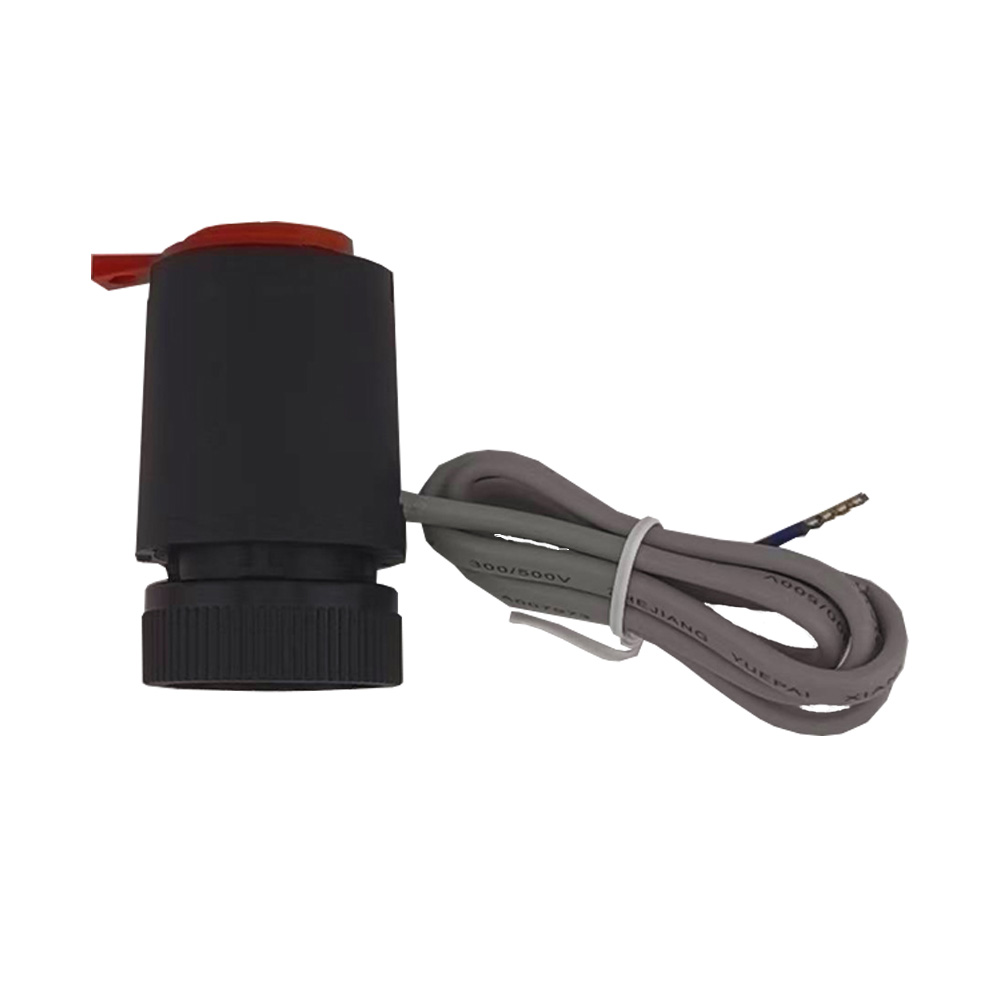

Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System

Application field

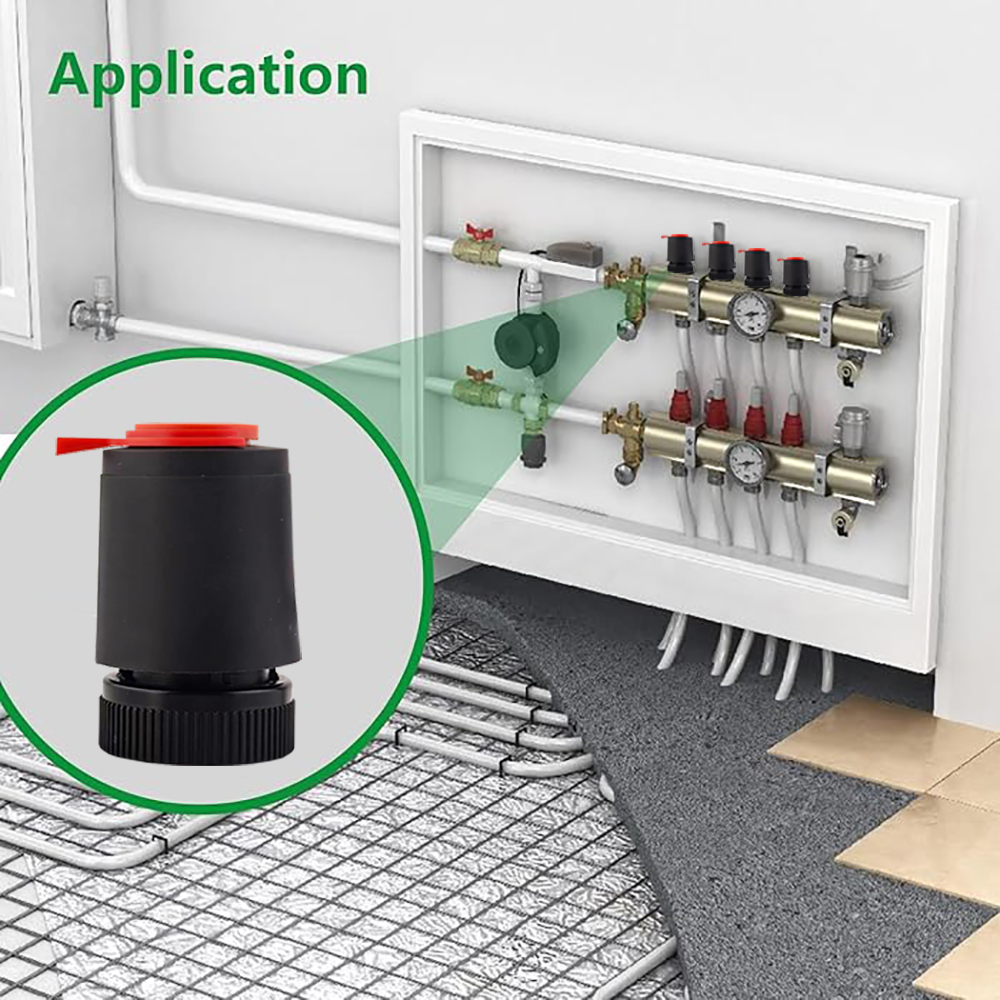

In order to realize low carbon, energy saving and emission reduction for the whole people, intelligent electric drive is used to realize automatic temperature control of households and rooms. Effectively save energy waste. The electric drive is controlled by the temperature control panel to set the temperature or turn off the heating. It is installed above the water distributor, with a temperature-controlled radiator, and can be used on the fan coil. In the northern area where there is heating, the normally open series (the heating cycle can also be supplied when the power is cut off) is suitable for controlling the regional valve and the water cycle.

Product parameters
1.Electrothermal paraffin propelling element, driven by PTC heating
2.With spring reset function, the valve closes (normally closed) or opens (normally open) after new power
3.The nut link installation method is simple, fast, easy to disassemble and assemble, and the work runs smoothly without any noise
4.Micro power consumption, long service life

Working voltage: AC230V/50/60HZ Working stroke: 3-5mm
Travel time: 3-5min Thrust: 110N
Power consumption: 2W Connection length: 900mm

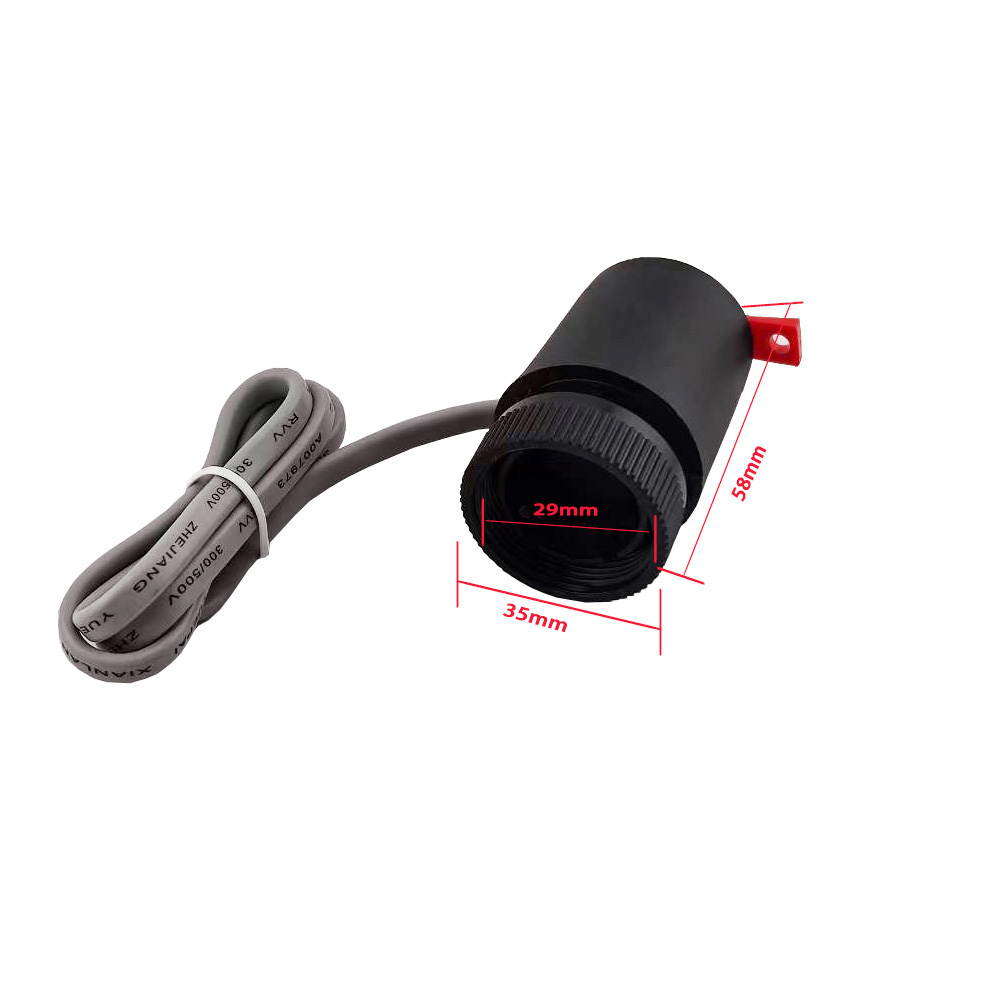

Thread connection size: M30*1.5
Shell material: PC+GF10% flame retardant material
Brand: Multi-leaf
Material: Flame Retardant ABS + Brass
Thread interface:  internal thread Working
voltage:  230V
Applicable place: opening and disconnecting heating equipment

Packaging & Delivery

inquiry

Related products

Learn about our business

Duoye Intelligent Control Equipment (Ningbo) Co., Ltd.

The company has cultivated a strong injection mold research ability and formed a large-scale production capacity.

Multi-leaf Intelligent Control Equipment (Ningbo) Co., Ltd. was founded in 2020, formerly known as Zhejiang Yuyao Leiyuan Control Equipment Factory. As a famous Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System suppliers and Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System manufacturer in China, Multi-leaf Intelligent Control Equipment can provide you with quality assurance you can trust. The overall industry experience has accumulated for more than 10 years, is located in China Plastic City. It is a high-tech enterprise engaged in the research and development, production and sales of energy-saving HVAC products. We also wholesale Electric Thermal Actuator, AC230V On/Off Normally Open Close For Underfloor Heating Circuit Manifold For Under Floor Heating System in bulk. Feel free to visit our factory.

Plant & Equipment

Welcome to our factory for guidance and cooperation

View more
  • Honor
  • Honor
  • Honor
Industry knowledge extension of this products
Introduction to Low-Carbon Energy-Saving Electric Heating Actuator
The Low-carbon energy-saving electric heating actuator is a cutting-edge solution designed to promote low carbon emissions, energy efficiency, and emission reduction for a wide range of households and rooms. By employing intelligent electric drive technology, this actuator enables automatic temperature control, thereby reducing energy waste significantly.
It is typically installed above the water distributor and can be utilized with temperature-controlled radiators or fan coils. This versatility makes it suitable for various heating systems, particularly in northern regions where heating is prevalent.
One notable feature of the Low-carbon energy-saving electric heating actuator is its normally open series, ensuring that the heating cycle can continue even during power outages. This continuous supply of heat enhances convenience and comfort in situations where uninterrupted heating is crucial.
The actuator excels in controlling regional valves and water cycles, making it an ideal choice for managing heating systems in specific areas. Its integration into such systems promotes energy efficiency by precisely regulating the distribution and circulation of heated water.
By utilizing this innovative actuator, households and rooms can experience optimal temperature control while simultaneously contributing to environmental sustainability.

Benefits of Low-Carbon Energy-Saving Electric Heating Actuator
One of the main benefits of low-carbon energy-saving electric heating actuators is their energy efficiency. They are designed to consume less energy than traditional heating systems, which translates to lower energy bills and a reduced carbon footprint. Additionally, these actuators do not produce any harmful emissions, making them an environmentally friendly alternative to traditional heating systems.
Another benefit of low-carbon energy-saving electric heating actuators is their ease of installation and maintenance. They are typically smaller and lighter than traditional heating systems, making them easier to install in confined spaces. They also require minimal maintenance, which means lower maintenance costs over time.
Finally, low-carbon energy-saving electric heating actuators provide a high level of control and precision. They can be easily integrated into building management systems, which allows for precise temperature control in individual rooms or areas. This makes them an ideal choice for commercial applications, such as hotels and offices, where comfort control is essential.
